Livar company was established in 1954 and is one of the largest foundries in Slovenia. Company employs over 600 people in two production sites (Ivančna Gorica and Črnomelj). It is a specialized foundry to produce gray and ductile cast iron products as well mechanical processing. In Livar we offer a complete solution to our customers; from idea, development, production of castings, mechanical processing, quality monitoring, to final delivery to EU countries (Italy, Slovenia, Hungary, Slovakia, Germany, Croatia, France, Austria, Sweden, others).
At the same time, we are supporting our customers with in-house tool production.
In addition to semi-finished products for agricultural machinery, mechanical engineering, the automotive industry and others, Livar also has its own Ducting Range program of covers and gratings.
Image gallery

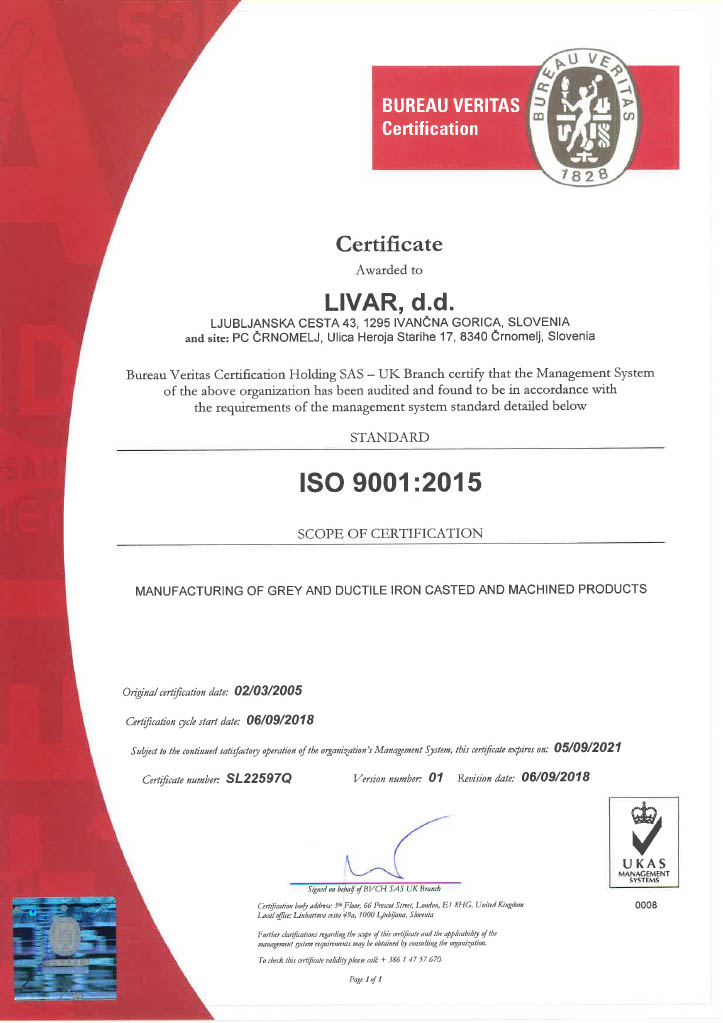

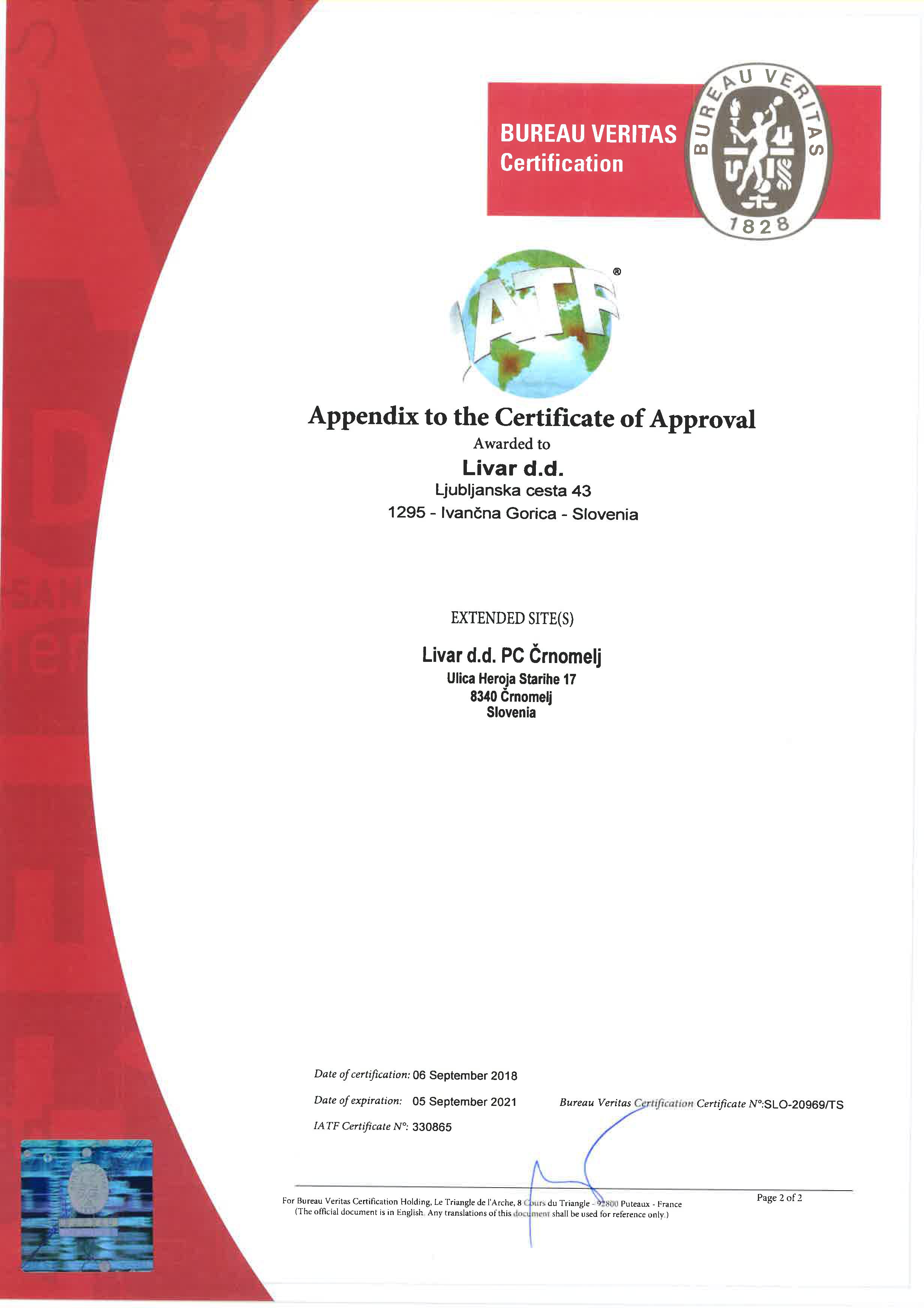

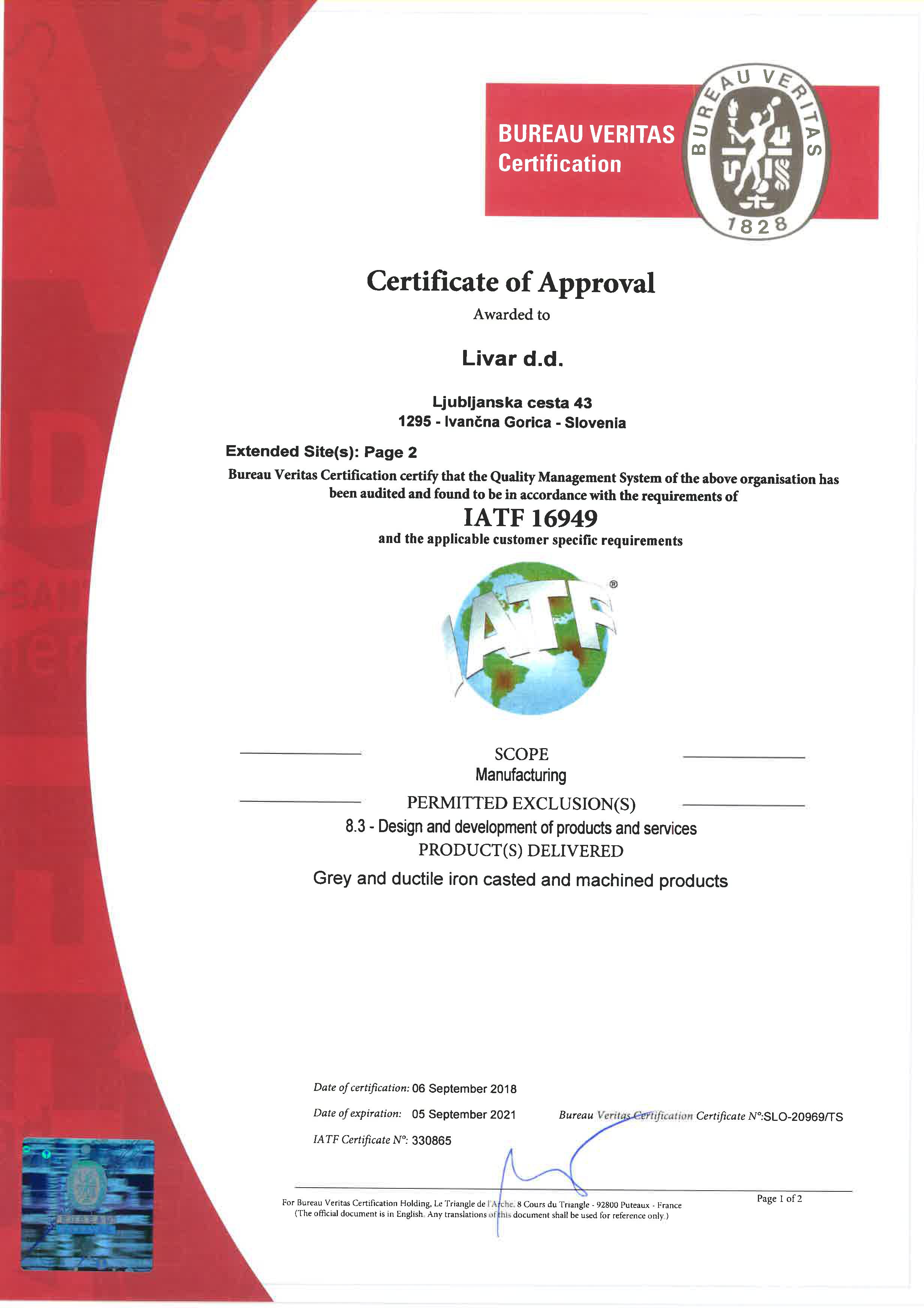

Certificates
- cast gully gratings and frames
- cast manhole drain covers
- cast manhole electrical covers
- cast manhole sewer covers
- cast manhole telecommunication covers
- cast pliers for opening covers
- castings for agricultural industry
- castings for construction industry
- castings for railway industry
- grey iron castings
- machine construction castings
- nodular iron castings / ductile iron castings
- 3D coordinate measurements
- classic milling
- classic turning
- CNC milling
- CNC turning
- flywheel turning
- general drilling
- grey iron casting
- grinding of castings
- nodular iron casting / ductile iron casting
- shaping
Kontakt
1. PRODUCTION LINES
DISA vertical line (2 lines)
Mould size: 600x480x170/ 320 mm
Optimal weight for form: 6kg – 12kg
BMD horizontal line (2 lines)
Mould size: 800x600x250/ 250 mm
Optimal weight for form: 30kg – 40kg
ASPA horizontal line
Mould size: 1000x850x300/ 300 mm
Optimal weight for form: 50kg – 100kg
MEC MASTER horizontal line
Mould size: 1150x850x300/ 300 mm
Optimal weight for form: 50kg – 150kg
2. MELTING SHOP
Cupola furnaces; 7t/h – 15t/h (3x)
Induction furnaces; JUNKER 5T,1300kW (1X)
BBC 5T, 1500kW (2x)
3. CHEMICAL COMPOSITION ANALYSES EQUIPMENT
Spectometer ARL Metal Analyser MA-0743
4. FINISHING AND AFTER TREATMENT
Blasting machines:
Tumble blasting machines
Overhead conveyor shot blasting machines with hook
Grinding/Fettlin:
Automatic grinding (4x Koyama 400, Koyama 500TT XLi)
Manual grinding
Hanging grinding machines
Heat treatment
Surface treatment – coating:
Dip painting production line
Water based prime colour
Anti-rust protection
Thickness: 30 microns
5. MACHINING
12x horizontal processing centres (4 axis with 2 pallets)
max dim (mm); x=800; y=760; z=850
8x vertical processing centres (3 axis with 2 pallets)
max dim (mm); x=560; y=430; z=570
8x horizontal turning machines
max dim (mm); Ø=420; L=1298
6x vertical turning machines - dual
max dim [mm]: Ø=730; L=750
6. QUOLITY IN-LINE/OFF-LINE TESTS
ARL emission spectrometers
Thermal analysis
Tensile strength and hardness measurement equipment
Laboratories equipped for sand and microstructure analysis
3 CMM + one hand-guide
3D scanning technology
7. PRODUCT DEVELOPMENT CAPABILITY
Pattern shop (4 CNC machines)
Design in: Solid works
Simulation tool: MAGMA
3D scanner
